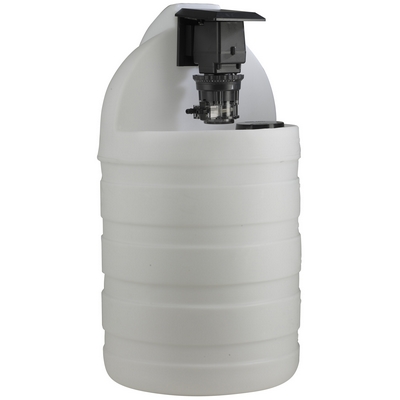

Stenner Feeder 45M1 w/30G 1/4W 120V
Material: W2T474183 Unit of Measure #: EA See All Stenner STS SystemsNatural Tank, Adjustable. Stenner™ Classic Series metering pumps are self-priming and the 3-point roller assembly provides a positive 2-point seal on the pump tube at all times. 45 Series pumps eliminate the need for anti-siphoning valves and diaphragms.
- StenTank 131.2 KB
- All Documentation
Natural Tank, Adjustable. Stenner™ Classic Series metering pumps are self-priming and the 3-point roller assembly provides a positive 2-point seal on the pump tube at all times. 45 Series pumps eliminate the need for anti-siphoning valves and diaphragms.
- StenTank 131.2 KB
- All Documentation
Image Gallery
Description
Stenner's adjustable head pumps are built with three detachable components; the motor, feed rate control, and the pump head that can be separated without tools. Outputs are dependent upon the rpm of the motor gears and the size of the peristaltic pump tube. The patented mechanical feed rate control (adjustable models) allows the pump's output to be scaled from 5% to 100% with the simple turn of the dial. Pump includes a 15 gallon natural tank.Features
Legacy Material ID
S3N45MJL1A1STAAProduct Features
- Mounting bracket
- Spare tube assembly
- Injection check valve
- 20' LDPE polyethylene-NSF/FDA approved suction/discharge tubing (white or black)
- 1 ceramic (clay) weight
- 4 connecting nuts
- 4 Ferrules
- Instruction booklet
Technical Data
- Model Number: Model 45M1
- Part Number: 45MJL1A1STAA
- Flow: 3 GPD
- Pressure: 25 PSI
- Controls: Adjustable output
- Electrical: 120V/60Hz
- Connection: #1 tube, 1/4" white
- Tube Material: Santoprene
- Maximum Operating Temperature: 125
Documentation
- StenTank131.2 KB
